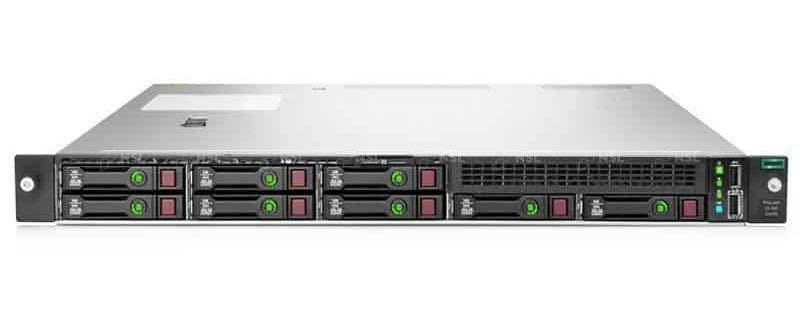

HPE ProLiant DL160 Gen10 Server

Giá liên hệ

Nhà sản xuất: HPE
Processor family support: Intel Xeon Scalable Series
Form Factor: 1U Rackmount
Xem thêm các cấu hình tùy chọn khác tại đây
Datasheet: Xem tại đây

Danh mục: Máy chủ, Máy chủ – Thiết bị lưu trữ

Mô tả
Brand

HPE ProLiant DL160 Gen10 Spec
Form Factor	1U rack
Chassis Types	• 8 SFF with optional support for additional 2 SFF SAS/SATA HDD/SSD • 4 LFF
System Fans	Single rotor hot plug fans will be included
For 4 LFF and 8 SFF chassis:	• 1 CPU – Includes 3 standard fans, 4 fans with addition of redundant fan kit • 2 CPUs – Includes 6 standard fans, 7 fans with addition of redundant fan kit
Memory	Type	HPE DDR4 SmartMemory Registered (RDIMM), Load Reduced (LRDIMM)
	DIMM Slots Available: 16	8 DIMM slots per processor, 6 channels per processor, 2 channels @ 2 DIMMs per channel, 4 channels @ 1 DIMM per channel
	Maximum capacity (LRDIMM): 1.0 TB	16 x 64 GB LRDIMM @ 2933 MT/s
	Maximum capacity (RDIMM): 1.0 TB	16 x 64 GB RDIMM @ 2933 MT/s
Dimensions	(Height X Width X Depth) • 4.29 x 43.46 x 61.49 cm • 1.69 x 17.11 x 24.21 in
Weight (approximate)	SFF Minimum	8 SFF chassis with 1x SFF HDD, 1 X Memory DIMM, 3 Fans, 1 Processor with heatsink, 1 power supply − 24.19lb 10.97kg
	SFF Maximum	8SFF chassis with 8 SFF HDD, 1 X Memory DIMM, 6 Fans, 2 Processors with heatsink, 2 power supplies − 30.69 lb 13.92 kg
	LFF Minimum	4 LFF chassis with 1X LFF Hard Drive, 1X Memory DIMM, 3 Fans, 1 Processor with heatsink, 1 power supply − 25.69 lb 11.65 kg
	LFF Maximum	4 LFF chassis with 4X LFF Hard Drive, 1X Memory DIMM, 6 Fans, 2 Processors with heatsink, 2 power supplies − 34.69 lb 15.74kg
Input Requirements(per power supply)	Rated Line Voltage	• 100 to 120 VAC • 200 to 240 VAC
BTU Rating	• Maximum	For 500W Power Supply: 1979 BTU/hr (at 100 VAC), 1911 BTU/hr (at 200 VAC), 1965 BTU/hr (at 240 VAC) for China Only
Power Supply Output(per power supply)	• Rated Steady-State Power	For 500W Power Supply: 500W (at 100 VAC), 500W (at 240 VAC), 500W (at 240 VAC) input for China only
Power Supply Output(per power supply)	• Maximum Peak Power	For 500W Power Supply: 500W (at 100 to 127 VAC), 500W (at 200 to 240 VAC), 500W (at 240 VAC) input for China only
Altitude	• Operating	3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Altitude	• Non-operating	9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
