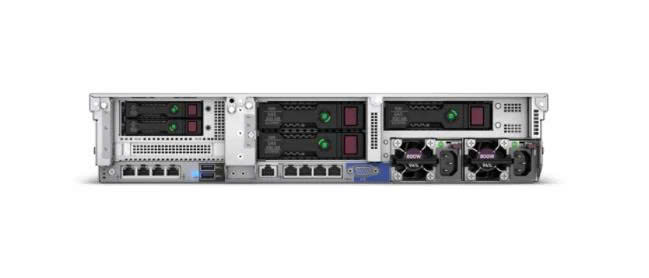

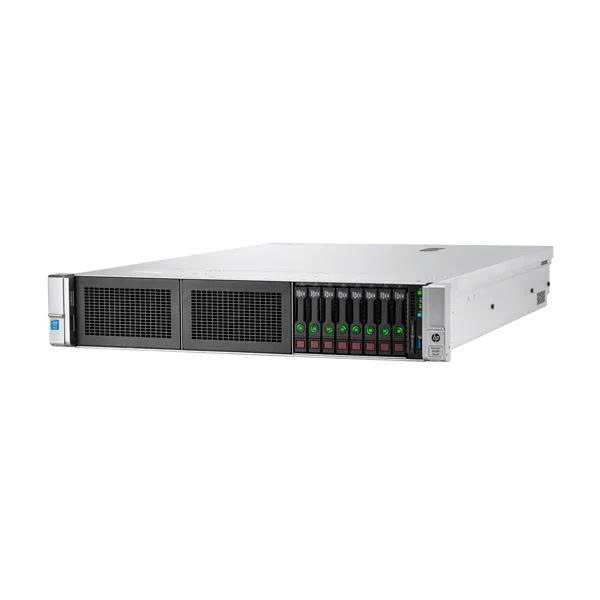

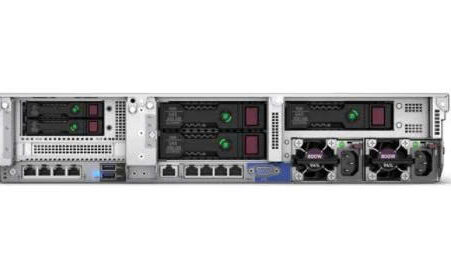

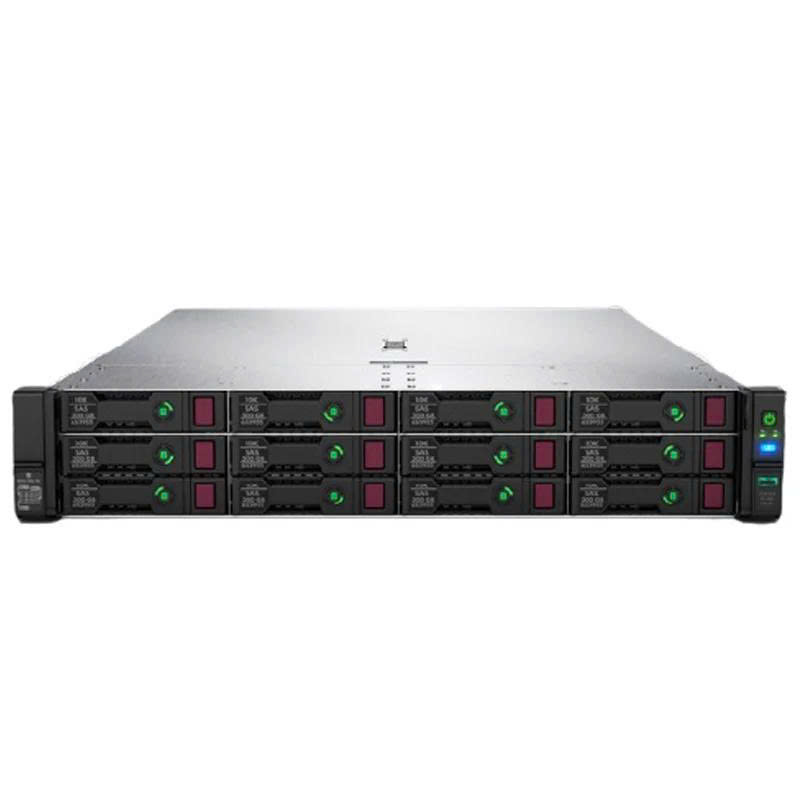

HPE ProLiant DL380 Gen10

Giá liên hệ

CPU: Intel Xeon Silver 4210R (10C/20T, 2.40 GHz, 13.75MB)
RAM: 16GB DDR4
HDD: None
RAID Controller: HPE SmartArray MR416i-P
PSU: 1x HPE 500W

Danh mục: Máy chủ, Máy chủ – Thiết bị lưu trữ

HPE

Mô tả
Brand

THÔNG SỐ KỸ THUẬT HPE PROLIANT DL380 GEN10 (SPECIFICATIONS)

Processor Type	Intel
Processor Family	Intel® Xeon® Scalable 8100/8200 series Intel® Xeon® Scalable 6100/6200 series Intel® Xeon® Scalable 5100/5200 series Intel® Xeon® Scalable 4100/4200 series Intel® Xeon® Scalable 3100/3200 series
Maximum Memory	3.0 TB with 128 GB DDR4, depending on processor model; 6.0 TB with HPE 512GB 2666 Persistent Memory Kit, depending on processor model
Memory Slots	24 DIMM slots
Drive Supported	8 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD; 2 M.2 SATA SSD standard on primary riser, depending on configuration; 6 SFF rear drive optional or 3 LFF rear drive optional and 2 SFF or 2 Dual UFF rear drive optional; 20 SFF NVMe optional; NVMe support via Express Bay will limit maximum drive capacity
Processor Core Available	4 to 28 core, depending on model
Processor Cache Installed	8.25 – 38.50 MB L3, depending on processor model
Processor Number	1 or 2
Processor Speed	3.9 GHz, maximum depending on processor
Memory Type	HPE DDR4 Smart Memory with optional Intel Optane Persistent Memory for HPE, depending on processor model selected. Intel Optane Persistent Memory for HPE only supported on select 2nd Generation Intel Scalable Series Processors, to include: 82xx, 62xxR, 62xx, 52xxR, 52xx series processors, and the 4215R and 4215 processors.
NVDIMM Type	HPE NVDIMM-N *Only available on 1st Generation Intel® Xeon® Scalable Processors
NVDIMM Rank	Single rank
NVDIMM Capacity	16 GB
Standard Memory	3.0 TB (24 X 128 GB) LRDIMM; 6.0 TB (12 X 512 GB) Persistent Memory
Optical Drive Type	Optional DVD-ROM or DVD-RW. Optional via Slim-line ODD Bay Kit. Optional external support is available too. Optional Half-Height RDX or Tape, up to 2. Optional via Media Drive Support Kit. For detail reference QuickSpecs.
Security	Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
Remote Management Software	HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional; requires licenses)
Power Supply Type	HPE Flexible Slot Redundant Power Supply modules 500W / 800W / 1600W, depending on model SKU, or HPE Standard 500W Non-Hot-Plug/non-RPS Power Supply (ordering limited to non-EU/EMEA countries/regions)
Expansion Slots	8, for detailed descriptions reference the QuickSpecs
Network Controller	HPE 1 Gb 331i Ethernet adapter 4-ports per controller and/or optional HPE FlexibleLOM, depending on model
Storage Controller	1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a and/or 1 HPE Smart Array P816i-a and/or 1 HPE Smart Array E208i-a, depending on model
Form Factor	Rack Server (2U)
